Product family Manual
Manual Safety Covers
A crank-and-rope safety cover for pools up to 4.5 × 9.0 m. No civil works, no electrics. The cost-effective entry to a secured pool.
- Model V5M
- Drive Crank and rope
- Mechanism Top
- Max pool 4.5 × 9.0 m
- Civil works None required
A barrier, not a blanket
1,500 kg certified walkable barrier. Forms a solid, locked seal over the pool water surface to prevent accidents.
Up to 70% less heat lost
Eliminates evaporation, locks heat in the water, and reduces seasonal pool heating and chemical consumption costs.
Engineered longevity
Hydraulic drive built and tested in the UK. Sealed motor with guaranteed perpetual factory spare parts supply.
Mechanism by pool type
Where the mechanism sits decides the civil works, the aesthetics and how a technician reaches it in ten years. Pick the arrangement your pool allows. Section diagrams, not photographs. The geometry is the information.

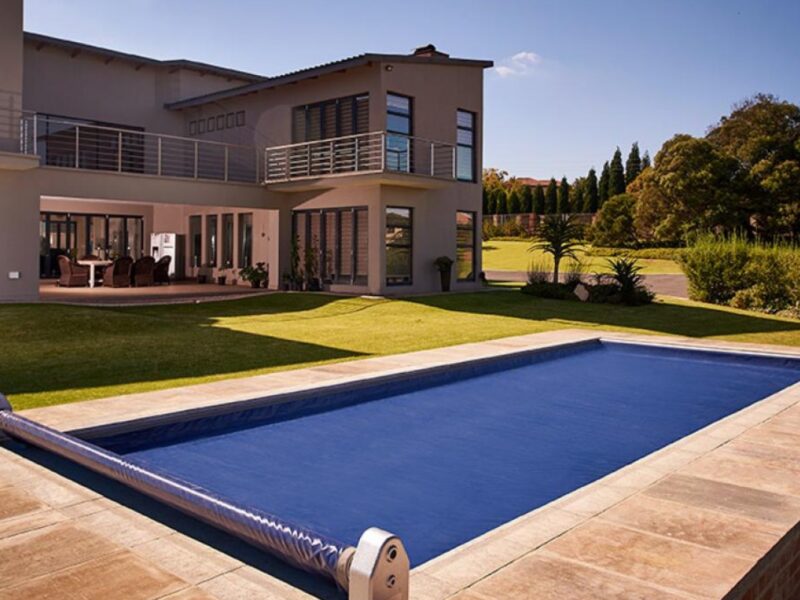

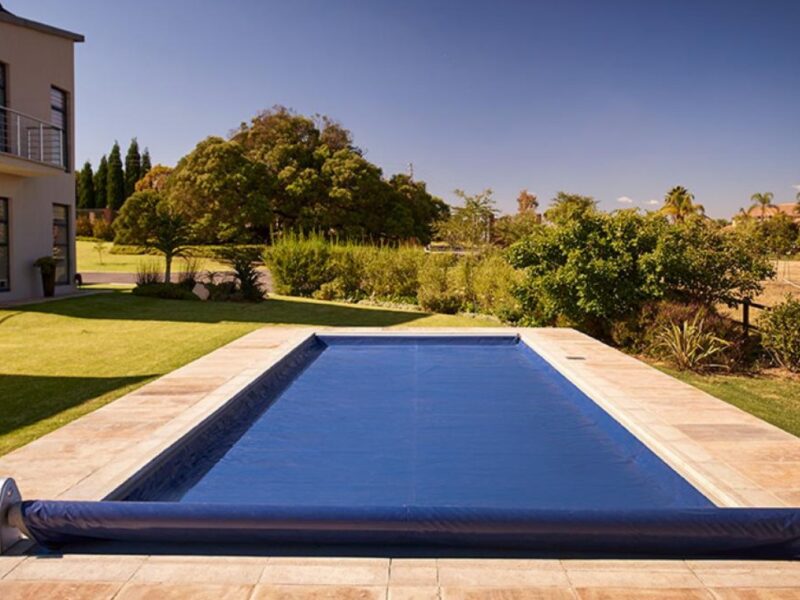

Top mechanism, flat track TOP · FLAT TRACK
The roller sits visible at the pool end and the canvas runs on a flat track fixed to the deck. The simplest arrangement PoolLock builds.
- Advantage: No pit, no structural work. The cover can be added to a finished pool.
- Advantage: Every moving part is reachable without lifting a lid.
- Advantage: Lowest installed cost in the range.
- Disadvantage: The roller is part of the poolside view and cannot be hidden.
- POOL TYPE
- Skimmer · any shape
- CIVIL WORKS
- None
- SERVICE ACCESS
- Direct, at the roller
- RETROFIT
- Yes
- DRIVE
- Crank and rope
Top mechanism, pocket track TOP · POCKET TRACK
Same visible roller, but the track is recessed into the coping so nothing stands above the walking surface.
- Advantage: Nothing to trip on: the track sits inside the coping line.
- Advantage: Cleaner sightline along the pool edge than a flat track.
- Disadvantage: The coping must be cut or specified with the recess in advance.
- POOL TYPE
- Skimmer · straight sides
- CIVIL WORKS
- Coping recess
- SERVICE ACCESS
- Direct, at the roller
- RETROFIT
- With new coping
- DRIVE
- Crank and rope
Top mechanism, top track TOP · TOP TRACK
The track is mounted on the coping surface. Used where the coping cannot be cut and the deck cannot be lifted.
- Advantage: Fits existing pools with stone or tiled coping, without civil works.
- Advantage: Track and roller can be removed and the pool returns to original.
- Disadvantage: Track is visible and stands proud of the coping.
- POOL TYPE
- Skimmer · retrofit
- CIVIL WORKS
- None
- SERVICE ACCESS
- Direct, at the roller
- RETROFIT
- Yes
- DRIVE
- Crank and rope
Disadvantages are stated because they decide the specification. If access matters more than the sightline, say so before the pit is poured.
Not sure which your pool allows? Find the right cover
Specification
- Drive
- Manual crank / low-effort gearbox
- Electrics near pool
- None required
- Walkable / Load capacity
- 200 kg/m² (1,500 kg total capacity)
- Canvas
- Reinforced PVC safety fabric
- Track options
- Surface or recessed tracks
- Thermal saving
- Up to 70% heat retention
- Warranty
- 2-year
Figures in square brackets are unconfirmed and must be supplied before publication. Dimensions are pool sizes, not cover sizes.
Operation & Motion
Cover operation in real time
Gallery & Installations

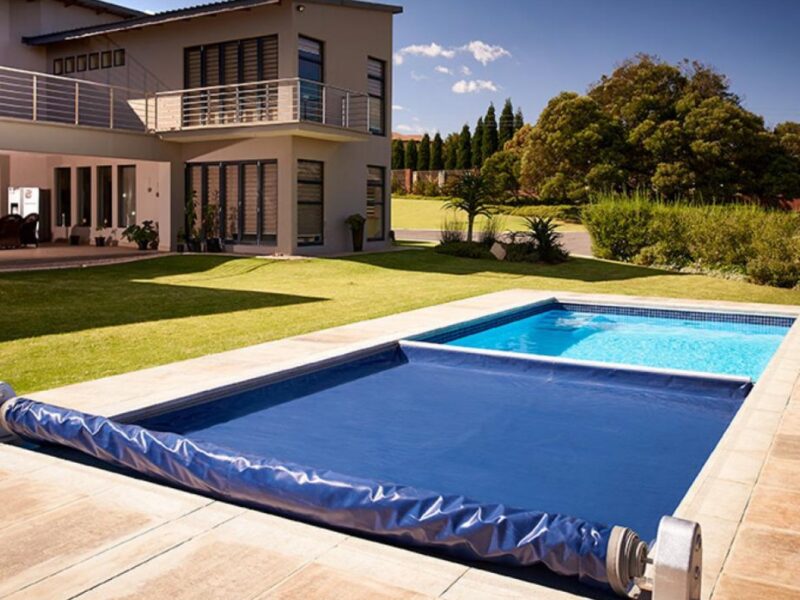

Installed covers
The same layout carries both covers
Identical modules, identical hierarchy, identical calls to action. The pages differ only in their values. The manual cover is the cost-effective entry to a secured pool, not a lesser product.
Manual Safety Covers
- Model
- V5M
- Drive
- Crank and rope
- Mechanism
- Top
- Max pool
- 4.5 × 9.0 m
- Civil works
- None required
Automatic Safety Covers
- Model
- V-Series
- Drive
- Hydraulic, key switch
- Mechanism
- Top · Under
- Largest built
- 11 m, made to measure
- Civil works
- Pit or top mechanism
Safety
A closed PoolLock cover forms a solid barrier over the water surface and is built to carry the weight of a child who walks onto it. A cover reduces risk. Supervision of children around water remains necessary.
