Product family Automatic
Automatic Safety Covers
A hydraulic cover that closes over the water on a key switch. No electrics near the pool. Engineered to survive decades of sun, frost and pool chemistry.
- Model V-Series
- Drive Hydraulic, key switch
- Mechanism Top · Under
- Largest built 11 m, made to measure
- Civil works Pit or top mechanism
Lasts
Anodised track, stainless fixings and a sealed drive unit. Replaceable parts, not a sealed assembly.
Quality
Hydraulic drive built and tested in the UK. Norwegian engineering standards since the 1970s.
Protects
Closed on a key switch. A closed cover forms a solid barrier over the water surface.
Mechanism by pool type

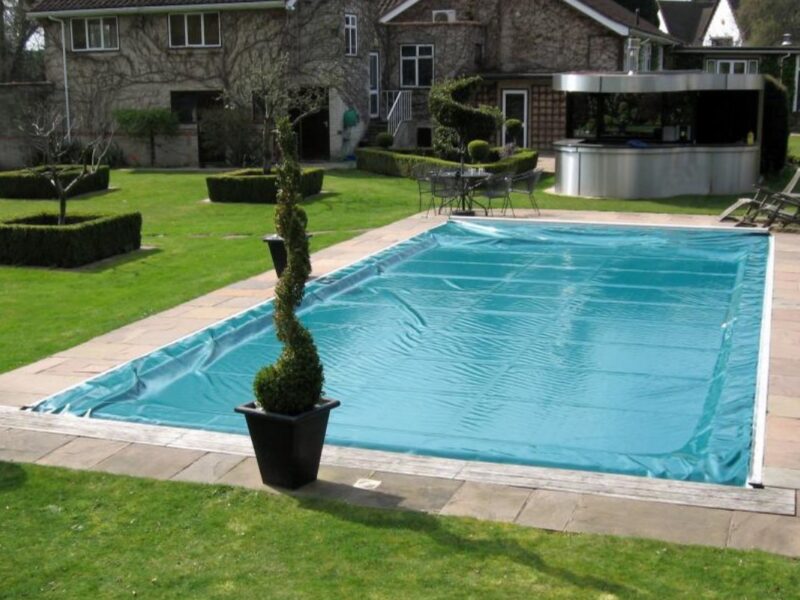

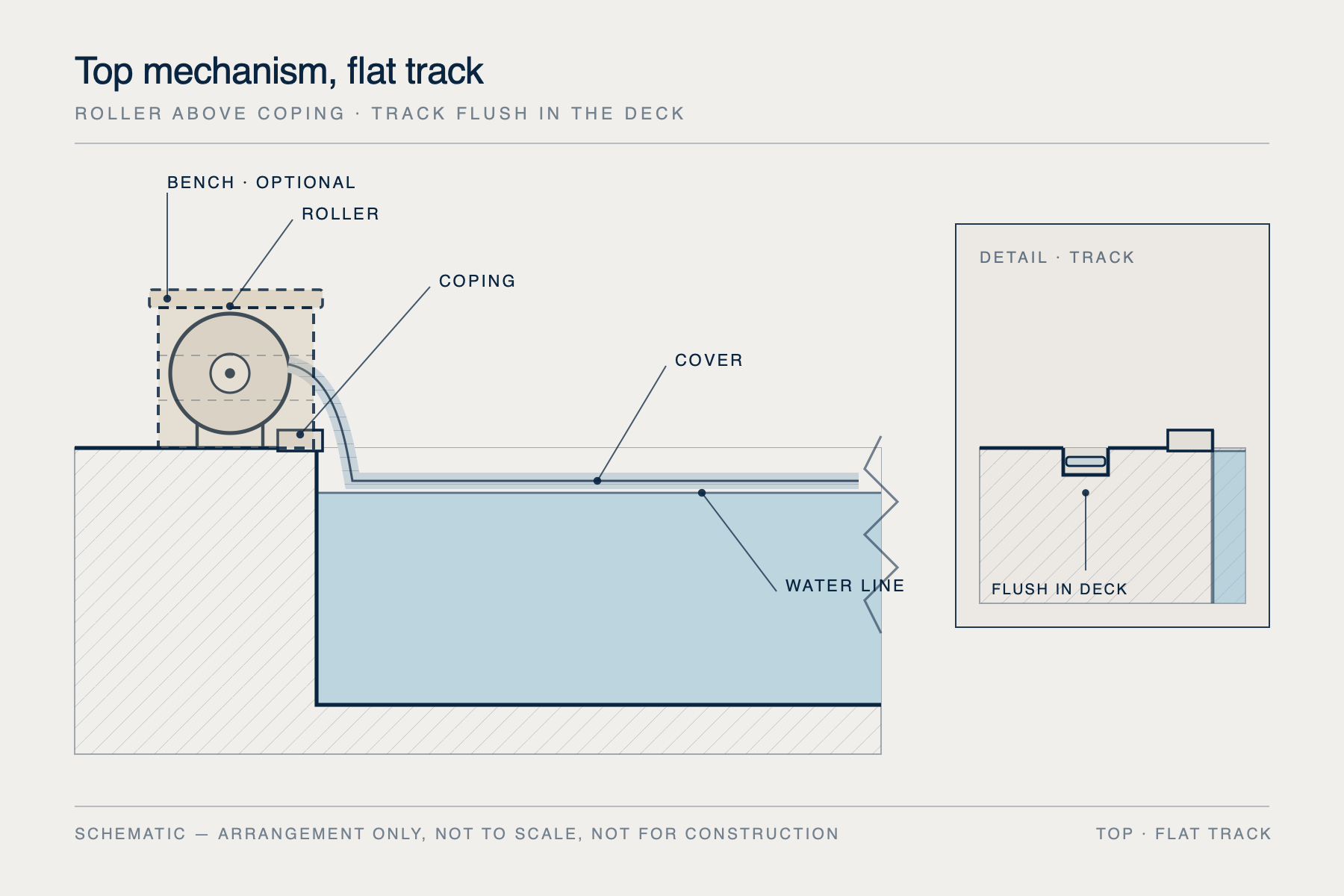

Download the section drawingsTop mechanism, flat track TOP · FLAT TRACK
The roller sits visible at the pool end and the canvas runs on a flat track fixed to the deck. The simplest arrangement PoolLock builds.
- Advantage: No pit, no structural work. The cover can be added to a finished pool.
- Advantage: Every moving part is reachable without lifting a lid.
- Advantage: Lowest installed cost in the range.
- Disadvantage: The roller is part of the poolside view and cannot be hidden.
- POOL TYPE
- Skimmer · any shape
- CIVIL WORKS
- None
- SERVICE ACCESS
- Direct, at the roller
- RETROFIT
- Yes
- DRIVE
- Hydraulic, key switch

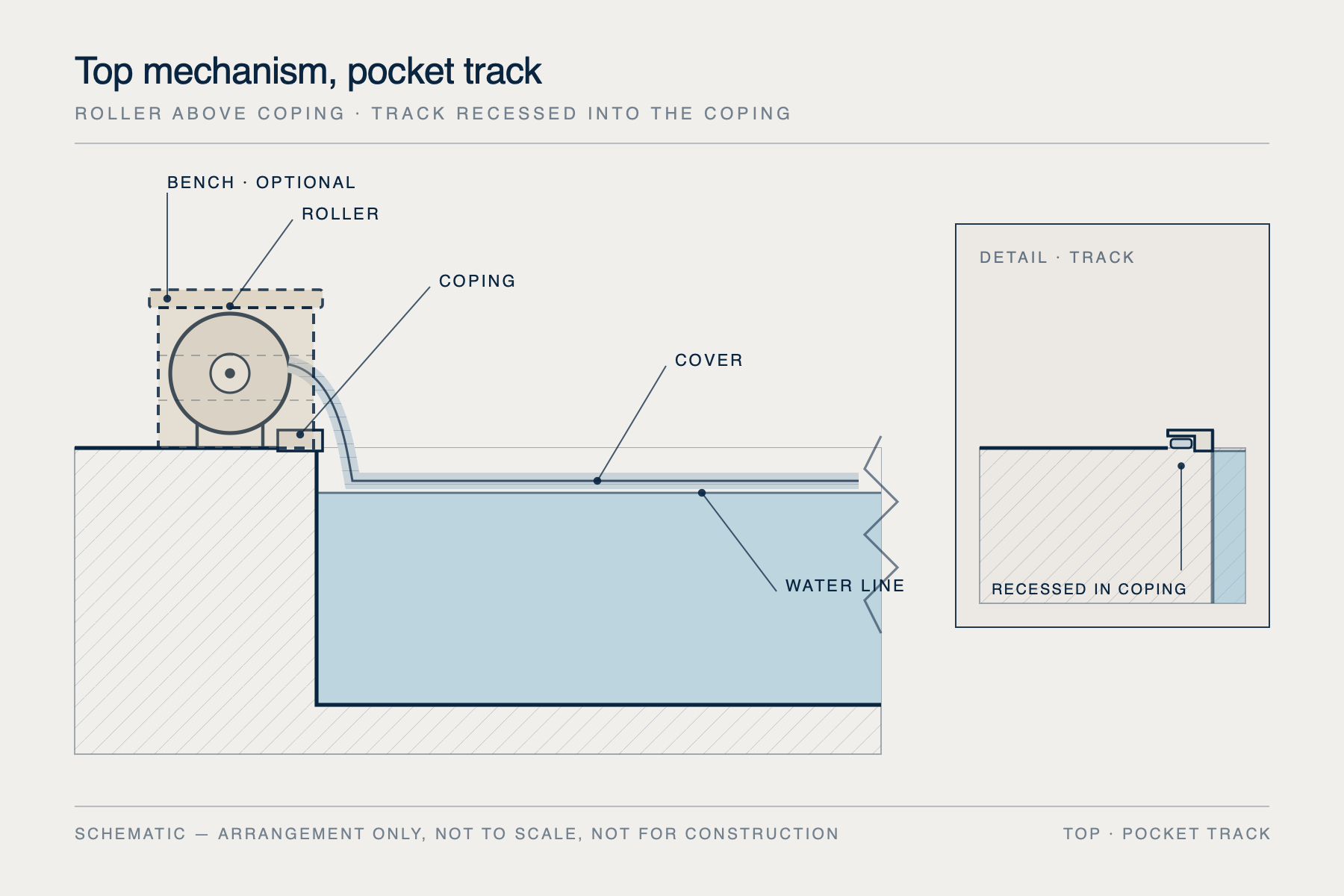

Top mechanism, pocket track TOP · POCKET TRACK
Same visible roller, but the track is recessed into the coping so nothing stands above the walking surface.
- Advantage: Nothing to trip on: the track sits inside the coping line.
- Advantage: Cleaner sightline along the pool edge than a flat track.
- Disadvantage: The coping must be cut or specified with the recess in advance.
- POOL TYPE
- Skimmer · straight sides
- CIVIL WORKS
- Coping recess
- SERVICE ACCESS
- Direct, at the roller
- RETROFIT
- With new coping
- DRIVE
- Hydraulic, key switch

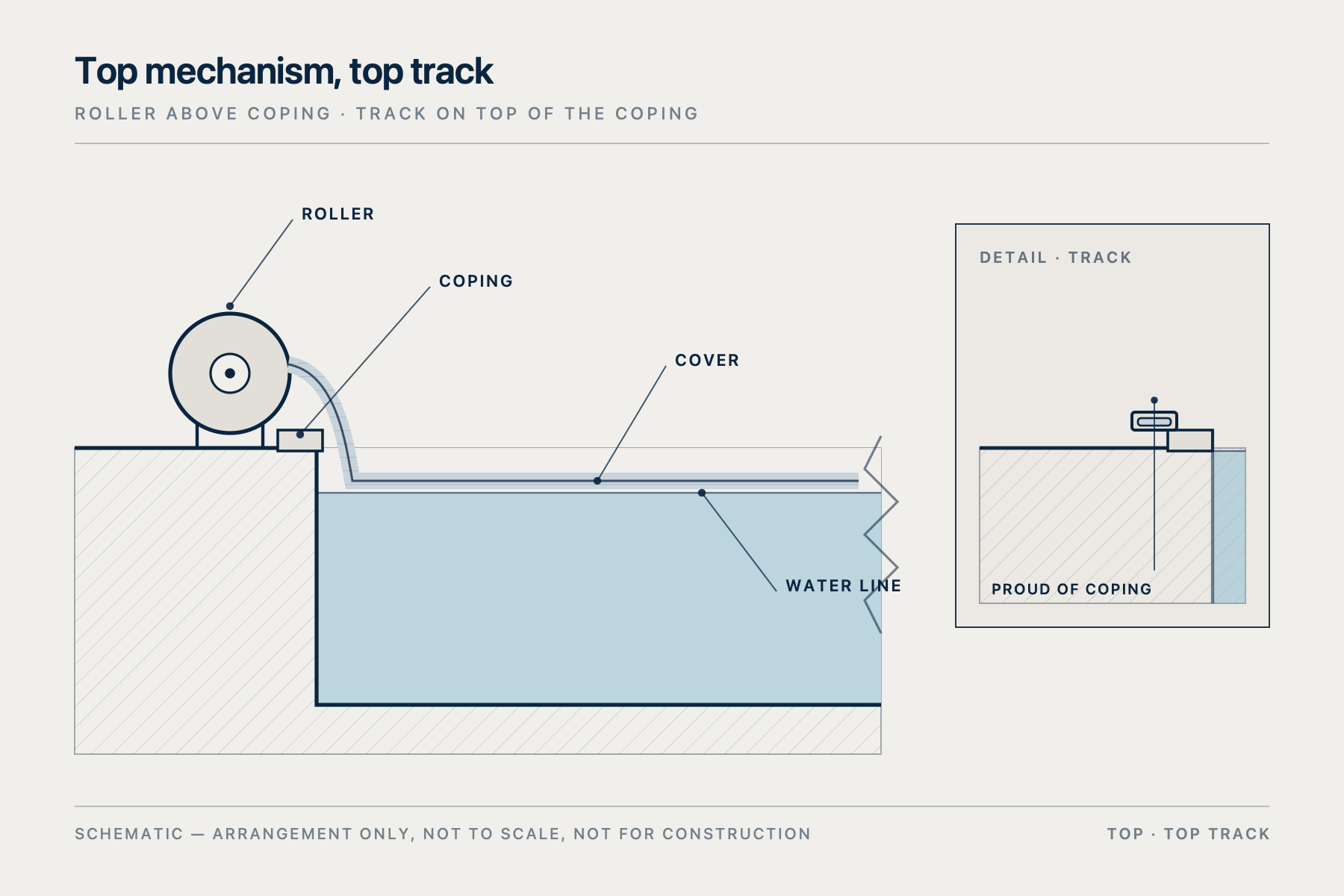

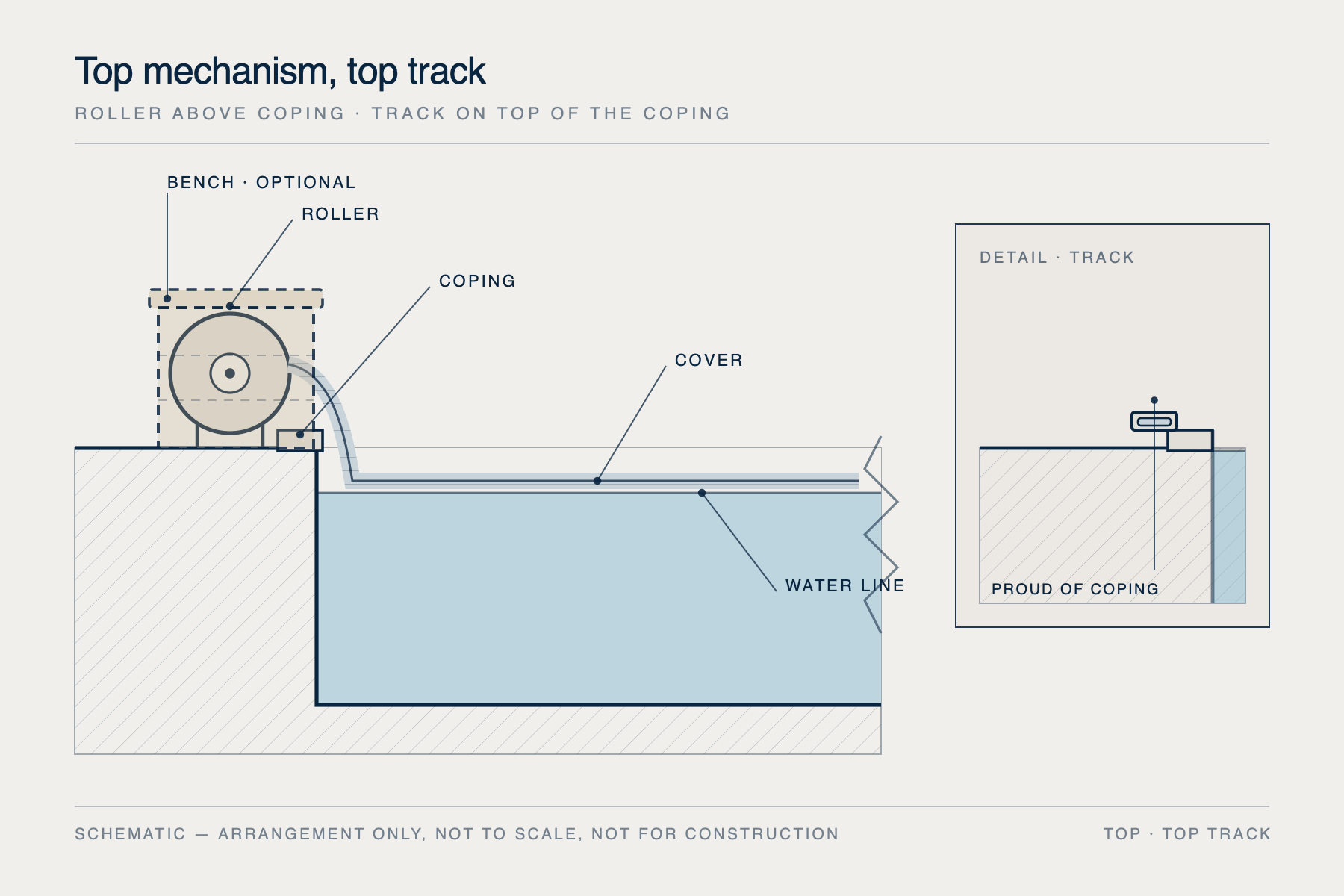

Top mechanism, top track TOP · TOP TRACK
The track is mounted on the coping surface. Used where the coping cannot be cut and the deck cannot be lifted.
- Advantage: Fits existing pools with stone or tiled coping, without civil works.
- Advantage: Track and roller can be removed and the pool returns to original.
- Disadvantage: Track is visible and stands proud of the coping.
- POOL TYPE
- Skimmer · retrofit
- CIVIL WORKS
- None
- SERVICE ACCESS
- Direct, at the roller
- RETROFIT
- Yes
- DRIVE
- Hydraulic, key switch

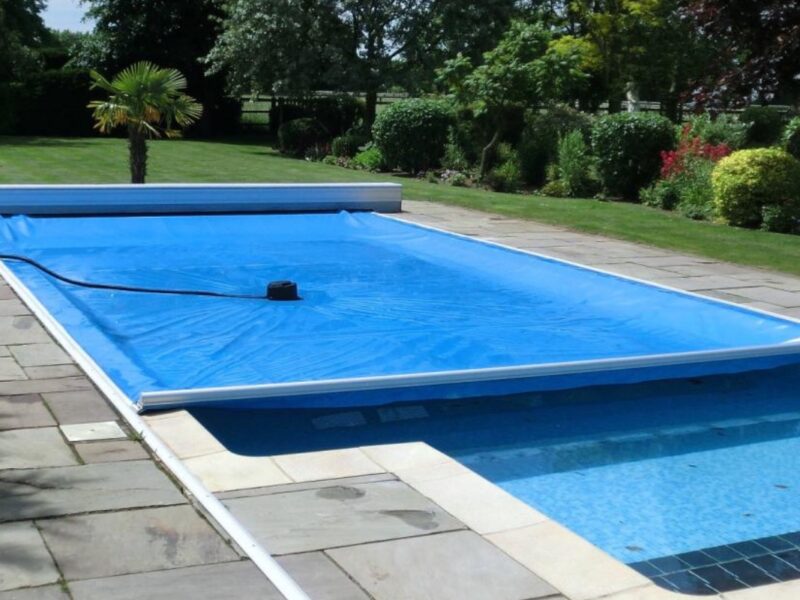

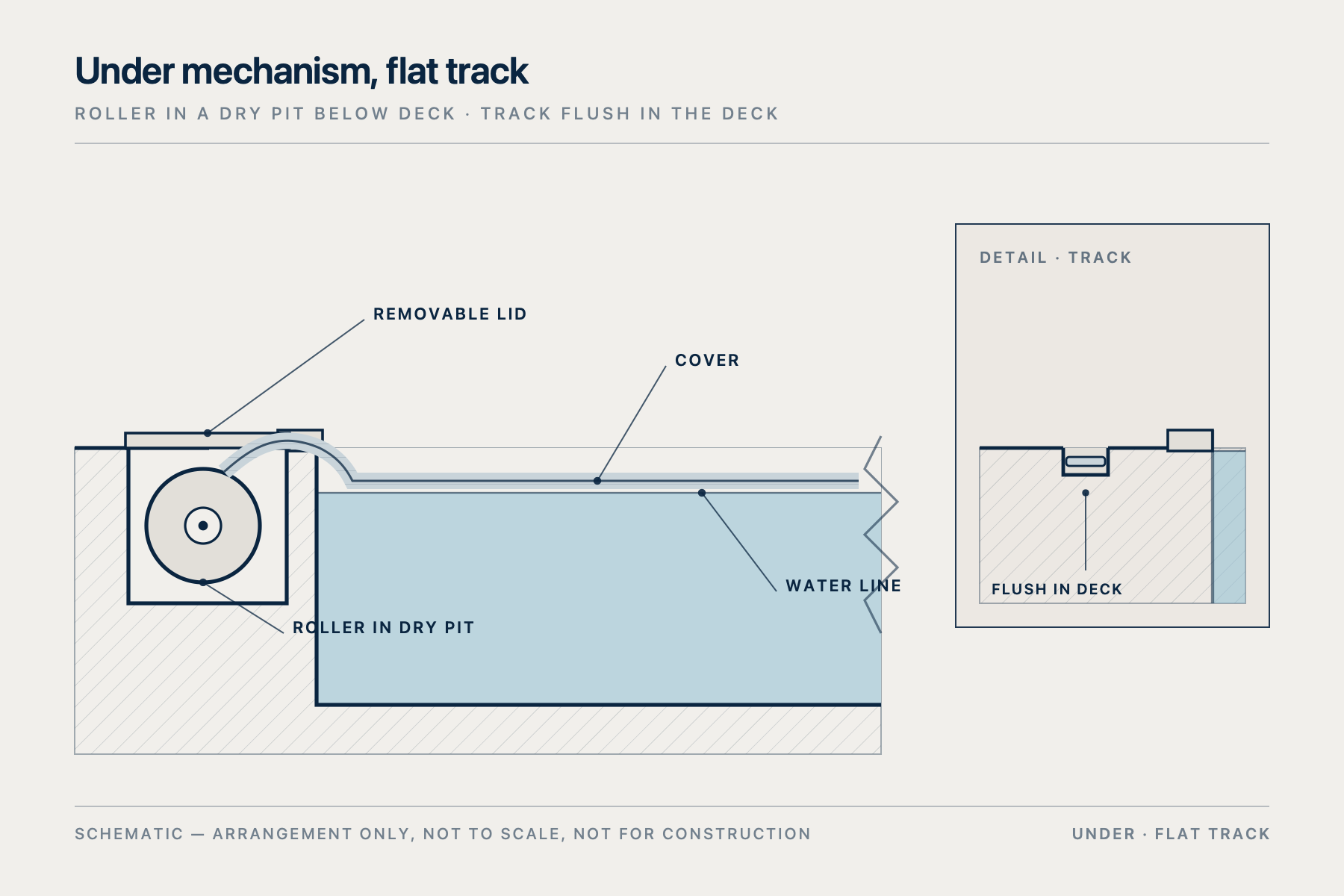

Under mechanism, flat track UNDER · FLAT TRACK
The roller is hidden in a pit under the deck at the pool end. From the poolside only the canvas is visible.
- Advantage: Cover and mechanism are completely invisible when open.
- Advantage: Pit lid can be finished to match the surrounding deck.
- Disadvantage: Requires a dry pit engineered into the pool surroundings.
- POOL TYPE
- Skimmer · overflow
- CIVIL WORKS
- Pit built in advance
- SERVICE ACCESS
- Through the pit lid
- RETROFIT
- If a pit exists
- DRIVE
- Hydraulic, key switch

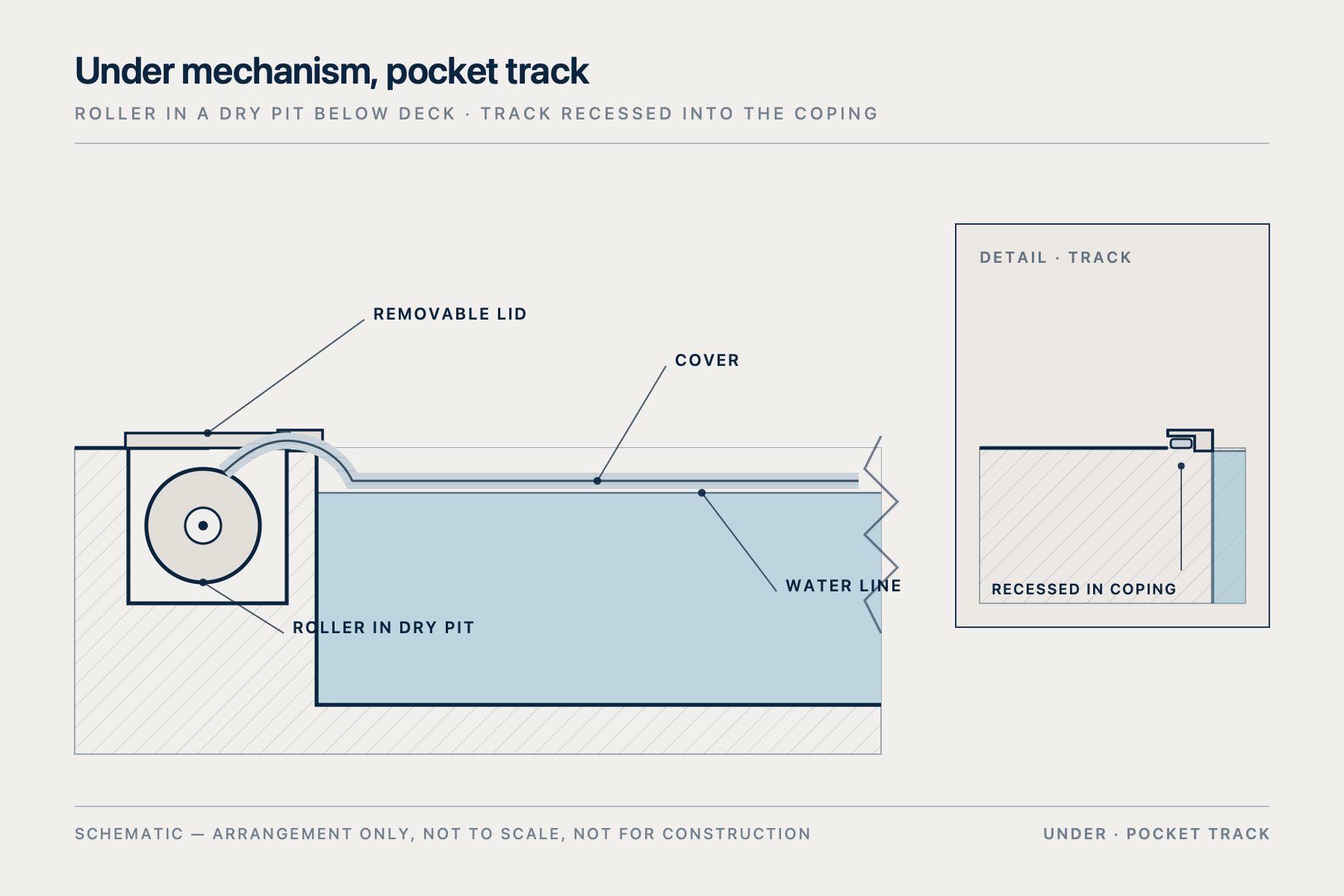

Under mechanism, pocket track UNDER · POCKET TRACK
The ultimate safety installation: roller hidden below deck and track recessed into the coping stones.
- Advantage: Zero visual intrusion: neither roller nor track projects above deck.
- Advantage: The cleanest architectural integration PoolLock manufactures.
- Disadvantage: Requires coordinated civil engineering of both pit and coping.
- POOL TYPE
- Skimmer · straight sides
- CIVIL WORKS
- Pit and coping recess
- SERVICE ACCESS
- Through the pit lid
- RETROFIT
- New build only
- DRIVE
- Hydraulic, key switch
Under mechanism, top track UNDER · TOP TRACK
The roller is submerged in a dry pit below deck, while the track sits on top of standard coping.
- Advantage: Hides the mechanism without cutting finished coping.
- Advantage: Track can be replaced without touching the pit.
- Disadvantage: Visible track undoes part of the reason for hiding the roller.
- POOL TYPE
- Skimmer
- CIVIL WORKS
- Pit built in advance
- SERVICE ACCESS
- Through the pit lid
- RETROFIT
- If a pit exists
- DRIVE
- Hydraulic, key switch
Disadvantages are stated because they decide the specification. If access matters more than the sightline, say so before the pit is poured.
Not sure which your pool allows? Find the right cover
Specification
Download the specification- Largest span built
- 11 m, made to measure
- Drive
- Hydraulic, key switch
- Electrics near pool
- None (0V poolside)
- Walkable / Load capacity
- 200 kg/m² (1,500 kg total capacity)
- Canvas
- HeatLock Thermofoam reinforced PVC
- Track options
- Flat · Pocket · Top
- Civil works
- None, or pit built in advance
- Thermal saving
- Up to 70% heat retention
- Warranty
- 2-year
M18 · Operation & Motion
Cover operation in real time
Gallery & Installations
Installed covers
Questions about this cover
Does the cover need electrics near the pool?
No. The drive is hydraulic and the power unit sits away from the pool. Only the key switch is near the water.
What happens in a power cut?
The cover stays where it is, and it can be closed by hand. Your installer shows you the procedure at handover, and it is in the manual that comes with the cover.
Can it be retrofitted to an existing pool?
Yes, with a top mechanism. It needs no pit. An under mechanism requires a pit built in advance.
Documents
No form. Specifications download directly.
The same layout carries both covers
Identical modules, identical hierarchy, identical calls to action. The pages differ only in their values. The manual cover is the cost-effective entry to a secured pool, not a lesser product.
Automatic Safety Covers
- Model
- V-Series
- Drive
- Hydraulic, key switch
- Mechanism
- Top · Under
- Largest built
- 11 m, made to measure
- Civil works
- Pit or top mechanism
Manual Safety Covers
- Model
- V5M
- Drive
- Crank and rope
- Mechanism
- Top
- Max pool
- 4.5 × 9.0 m
- Civil works
- None required
Safety

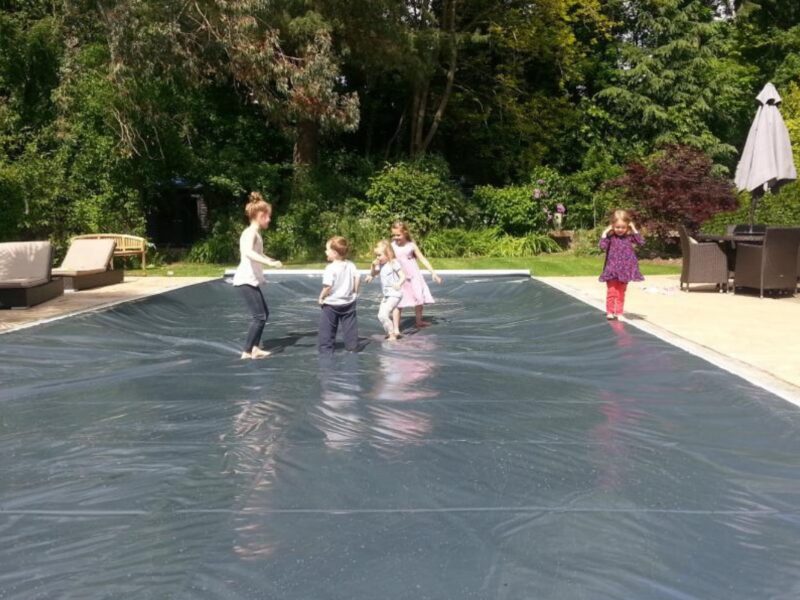

A closed PoolLock cover forms a solid barrier over the water surface and is built to carry the weight of a child who walks onto it. A cover reduces risk. Supervision of children around water remains necessary.
