Product family Slatted
Automatic Slatted Covers
Rigid slats that float on the water and wind onto a roller. They insulate while they protect: a closed slatted cover is a barrier over the surface and a lid on the heat underneath it.
- Model PS-iX
- Drive Hydraulic, key switch
- Arrangements Seven
- Warranty 2-year
Lasts
Slats and canvas are replaceable; the track and the drive are not consumables. 2-year on every cover.
Quality
A wide range of colours and custom designs, for both the canvas and the slats. Built to fit inground and aboveground pools.
Protects
Closed, the slats form a solid barrier over the water surface, built to carry the weight of a child who walks onto it.
Mechanism by pool type
Where the roller sits decides the civil works, the aesthetics and how a technician reaches it in ten years. Seven arrangements cover almost every pool. Section diagrams, not photographs. The geometry is the information.

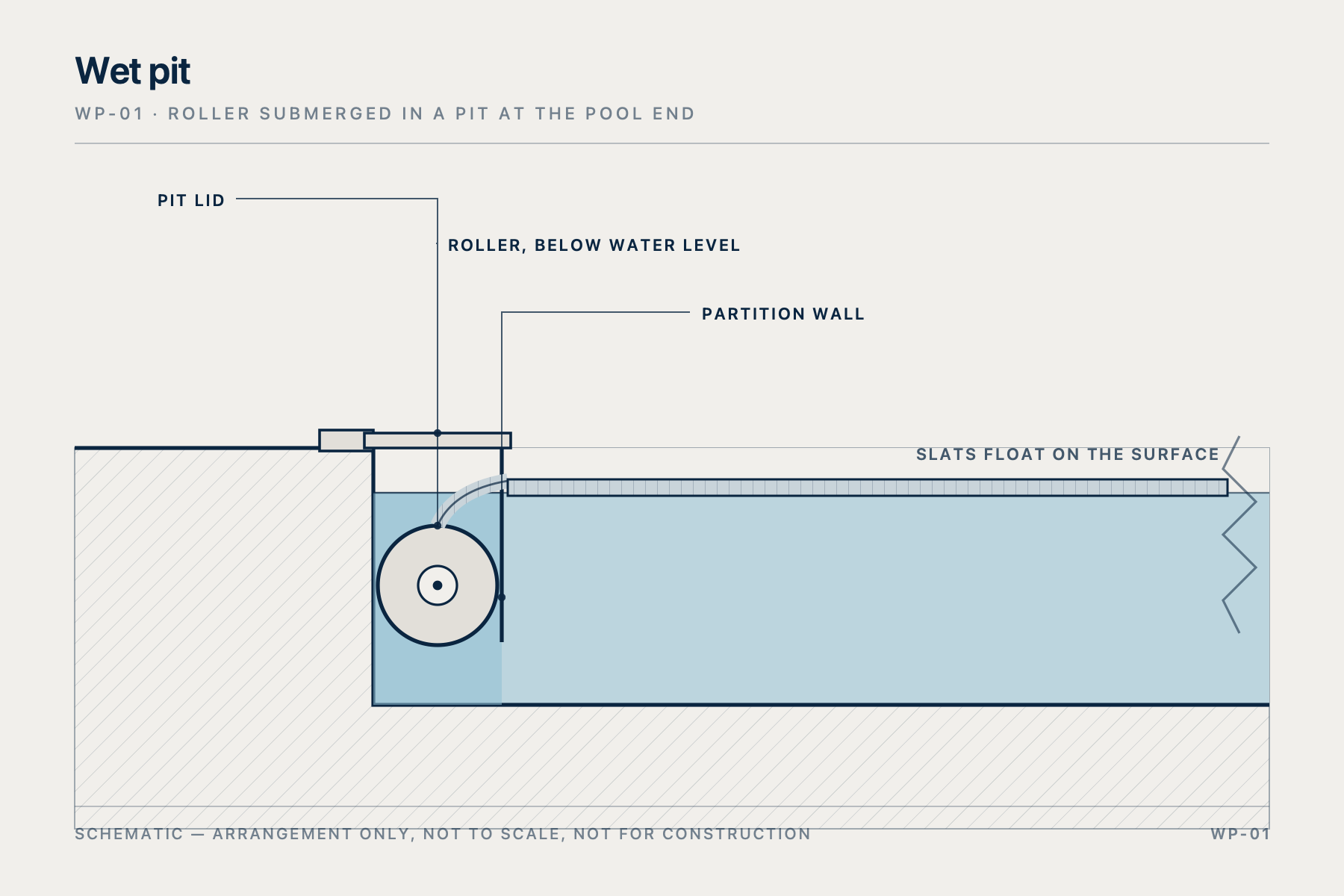

Wet pit WP-01
The roller sits below water level in a wet pit at the end of the pool, behind a partition wall.
- Advantage: Slats disappear into the pit. Nothing on the water, nothing on the deck.
- Advantage: Established arrangement, well understood by pool builders.
- Disadvantage: The pit takes pool length and must be waterproofed with the shell.
- POOL TYPE
- Skimmer · overflow
- CIVIL WORKS
- Wet pit
- SERVICE ACCESS
- Through the pit lid
- RETROFIT
- New build only
- DRIVE
- Hydraulic, key switch

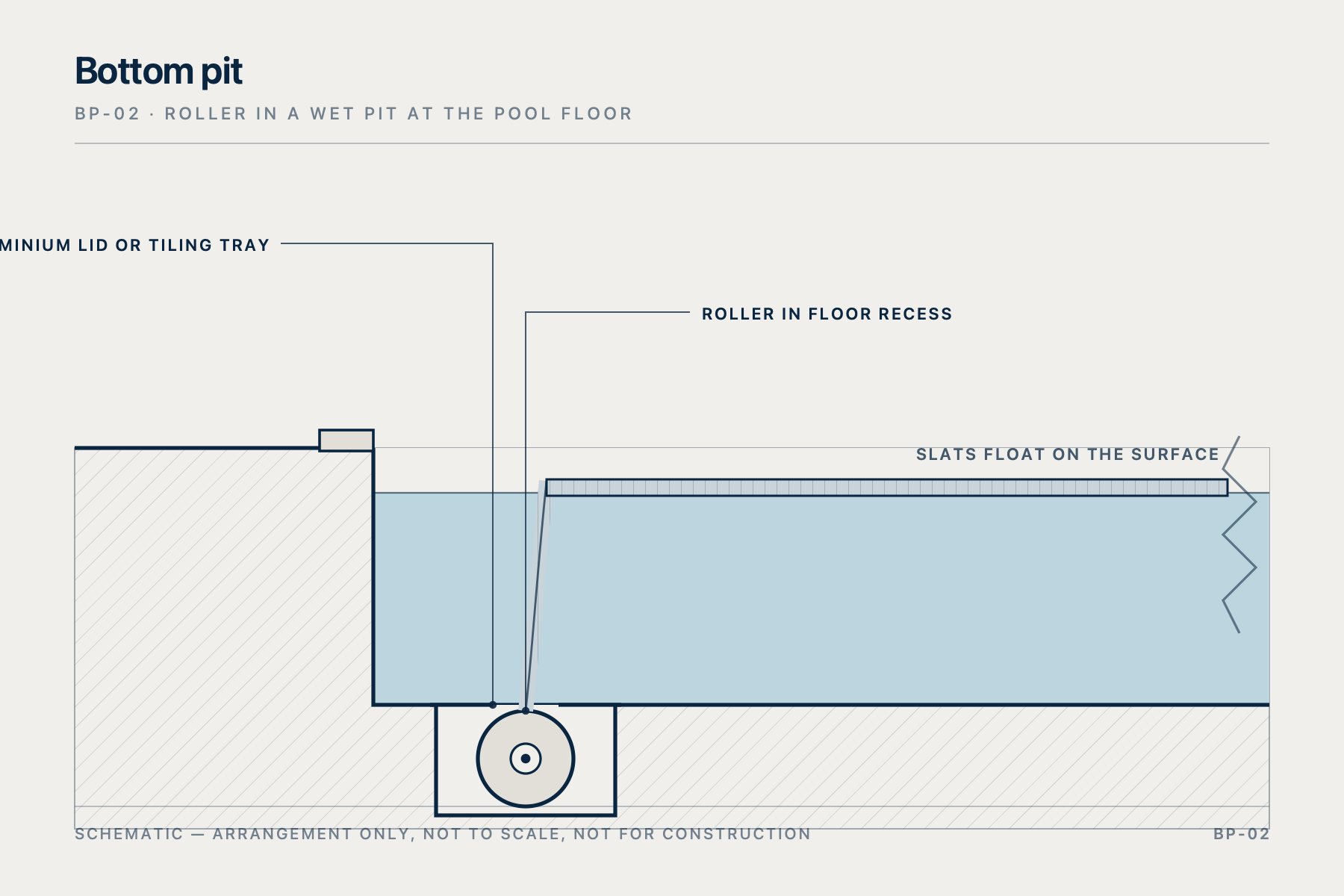

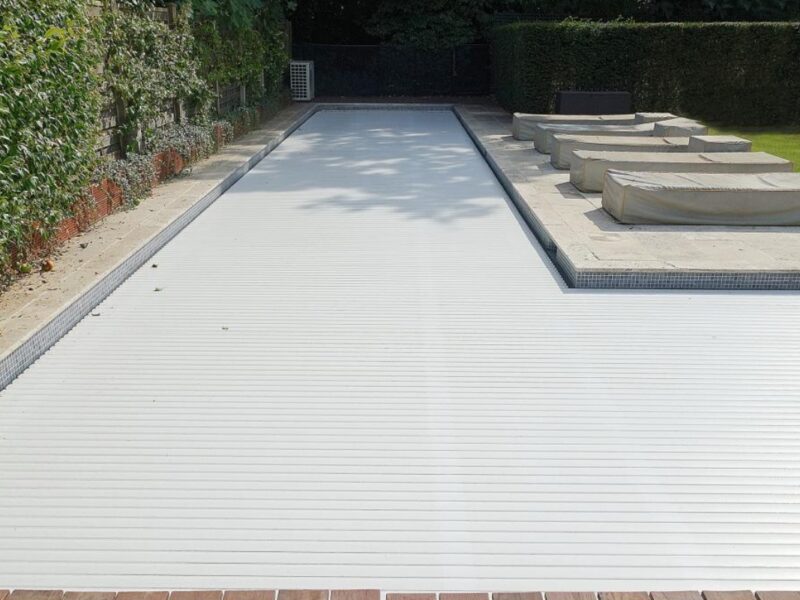

Bottom pit BP-02
The mechanism is hidden in a wet pit at the bottom of the pool, closed with an aluminium lid or a tiling tray.
- Advantage: The most aesthetic result: no mechanism visible above or beside the water.
- Advantage: Lid can be tiled to match the pool floor.
- Disadvantage: Service and maintenance access is genuinely difficult. Specify only if you accept that.
- POOL TYPE
- Skimmer · overflow
- CIVIL WORKS
- Bottom pit in the shell
- SERVICE ACCESS
- Difficult, pool must be drained
- RETROFIT
- New build only
- DRIVE
- Hydraulic, key switch

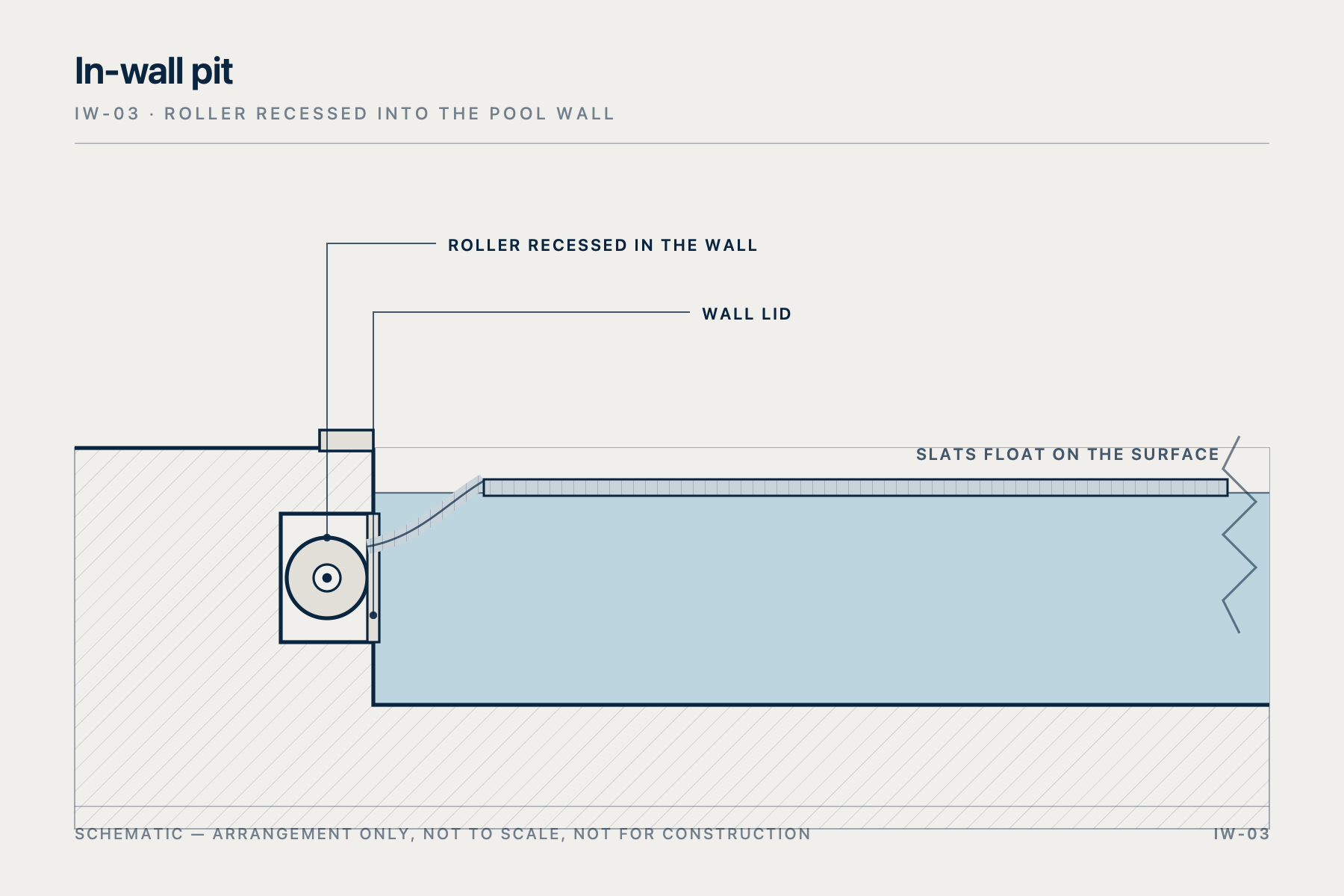

In-wall pit IW-03
The roller is recessed into the pool wall at the end, so pool length is preserved.
- Advantage: Keeps the full swimming length of the pool.
- Advantage: Mechanism is hidden without a floor pit.
- Disadvantage: The shell must be engineered around the recess from the start.
- POOL TYPE
- Skimmer · overflow
- CIVIL WORKS
- Wall recess in the shell
- SERVICE ACCESS
- Through the wall lid
- RETROFIT
- New build only
- DRIVE
- Hydraulic, key switch

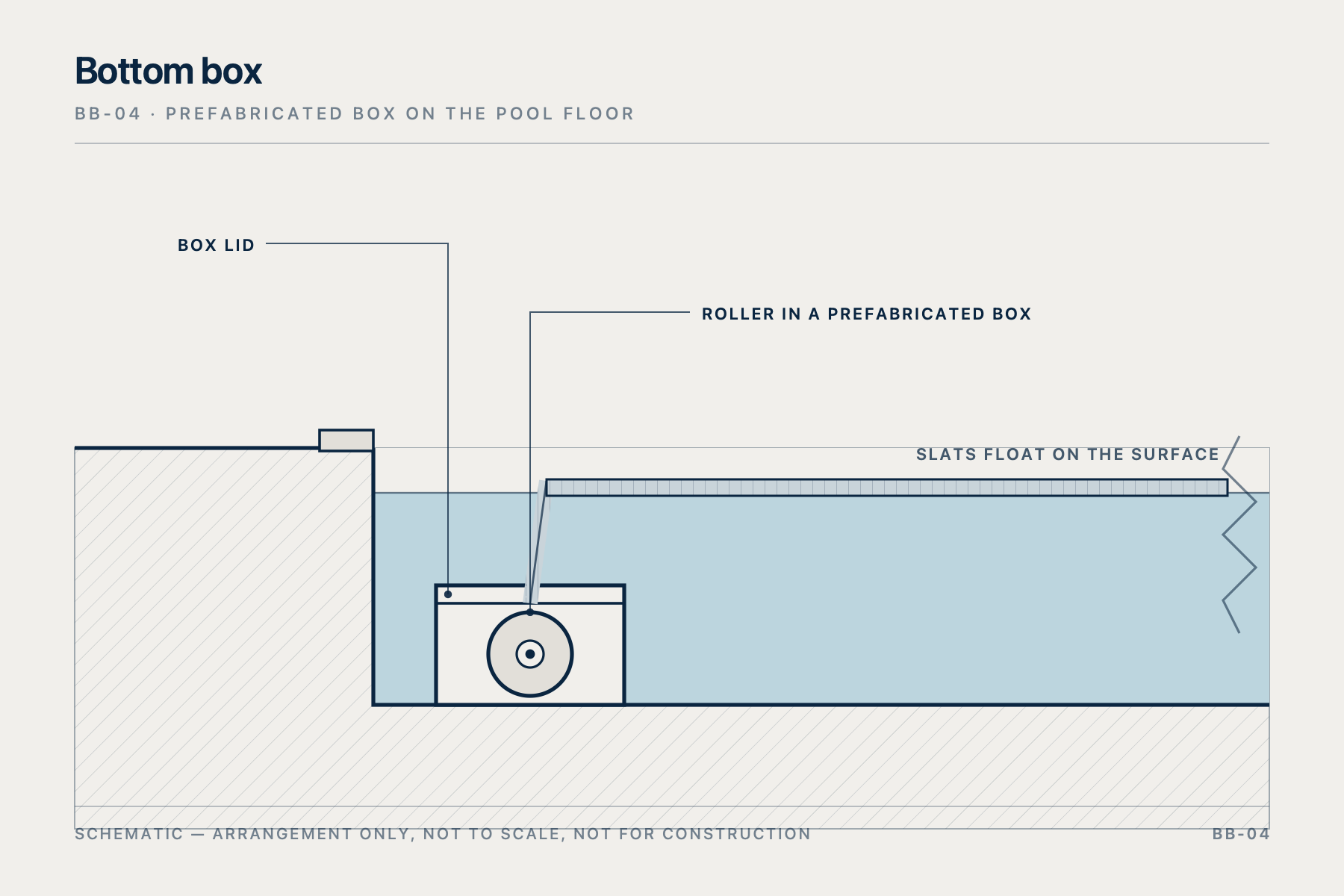

Bottom box BB-04
A prefabricated box holds the roller on the pool floor. No site-built pit, no shell modification.
- Advantage: Hidden mechanism on an existing pool, without breaking concrete.
- Advantage: Factory-built box: predictable dimensions and tolerances.
- Disadvantage: Occupies part of the pool floor at the end.
- POOL TYPE
- Skimmer
- CIVIL WORKS
- None in the shell
- SERVICE ACCESS
- Box lid, pool drained
- RETROFIT
- Yes
- DRIVE
- Hydraulic, key switch

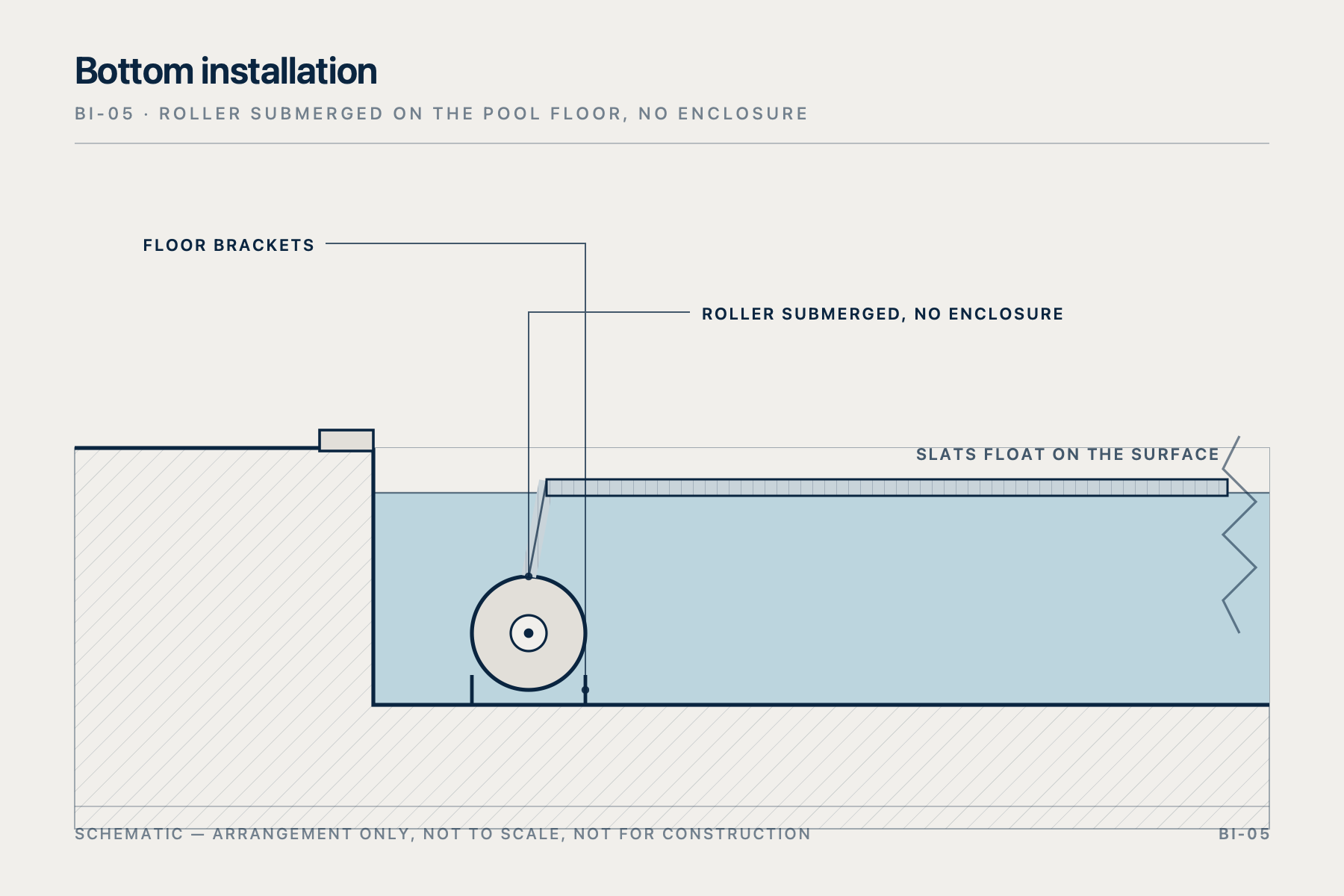

Bottom installation BI-05
The roller sits on the pool floor at the end, submerged and unenclosed.
- Advantage: Simplest hidden-roller option and the fastest to install.
- Advantage: Nothing above the water line or on the deck.
- Disadvantage: The roller and slats are visible through the water.
- POOL TYPE
- Skimmer
- CIVIL WORKS
- None
- SERVICE ACCESS
- Direct, pool drained
- RETROFIT
- Yes
- DRIVE
- Hydraulic, key switch

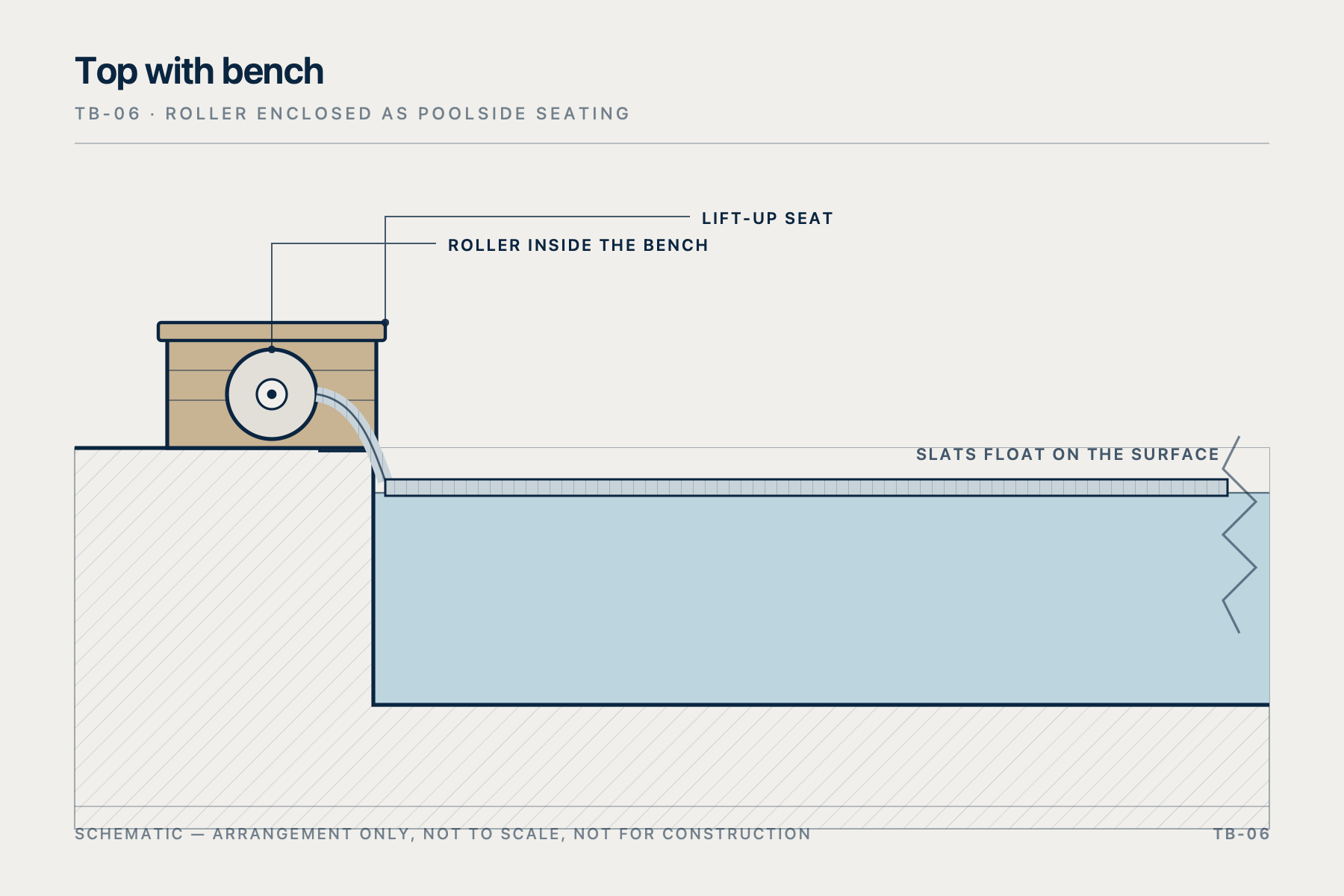

Top with bench TB-06
The roller is boxed at the pool end and finished as a bench, usually in timber.
- Advantage: Turns the mechanism into poolside furniture instead of hiding it.
- Advantage: Full access to the roller by lifting the lid.
- Disadvantage: Adds a built volume at one end of the pool.
- POOL TYPE
- Skimmer · any shape
- CIVIL WORKS
- None
- SERVICE ACCESS
- Lift the bench lid
- RETROFIT
- Yes
- DRIVE
- Hydraulic, key switch

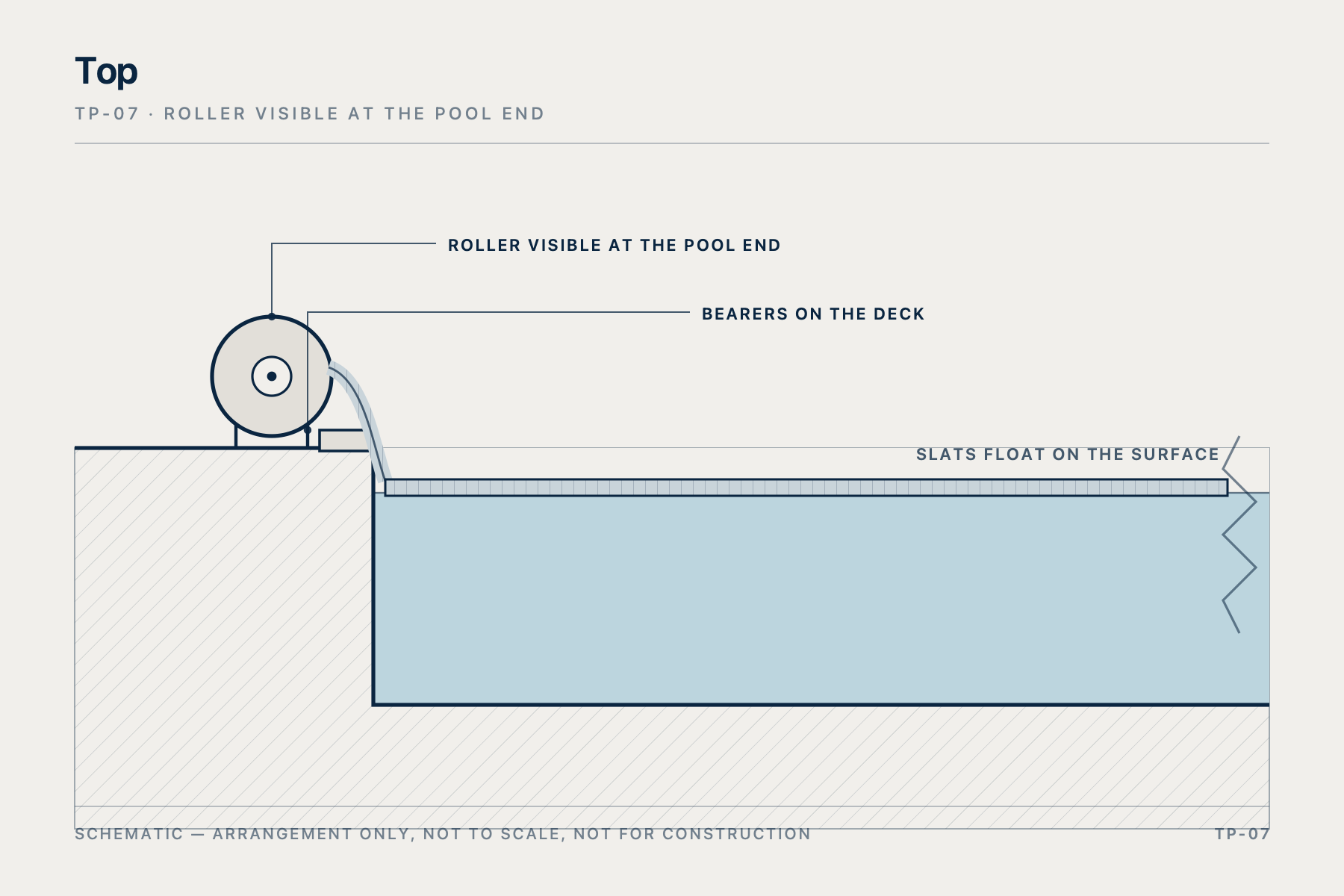

Top TP-07
The roller stays visible at the pool end. No pit, no box, no bench.
- Advantage: Lowest cost and the fastest route to a covered pool.
- Advantage: Everything is reachable for service without draining anything.
- Disadvantage: The mechanism is in full view at the poolside.
- POOL TYPE
- Skimmer · any shape
- CIVIL WORKS
- None
- SERVICE ACCESS
- Direct, at the roller
- RETROFIT
- Yes
- DRIVE
- Hydraulic, key switch
Disadvantages are stated because they decide the specification. If access matters more than the sightline, say so before the pit is poured.
Not sure which your pool allows? Find the right cover
Specification
- Primary function
- Thermal insulation, solar heating & clean pool protection
- Safety notice
- Non-walkable (floating slats)
- Drive
- Hydraulic / in-shaft motor, key switch
- Electrics near pool
- None (0V poolside)
- Slat profiles
- PVC or Polycarbonate (Solar, Crystal, Opaque)
- Pool types
- Inground and aboveground
- Warranty
- 2-year
Figures in square brackets are unconfirmed and must be supplied before publication. Which arrangements suit a given pool depends on the shell. A wet pit suits a skimmer pool and not an overflow one.
Operation & Motion
Cover operation in real time
Gallery & Installations
Installed covers
The same layout carries both covers
Identical modules, identical hierarchy, identical calls to action. The pages differ only in their values. The manual cover is the cost-effective entry to a secured pool, not a lesser product.
Automatic Slatted Covers
- Model
- PS-iX
- Drive
- Hydraulic, key switch
- Arrangements
- Seven
- Warranty
- 2-year
Automatic Safety Covers
- Model
- V-Series
- Drive
- Hydraulic, key switch
- Mechanism
- Top · Under
- Largest built
- 11 m, made to measure
- Civil works
- Pit or top mechanism
Safety
A closed PoolLock cover forms a solid barrier over the water surface and is built to carry the weight of a child who walks onto it. A cover reduces risk. Supervision of children around water remains necessary.
